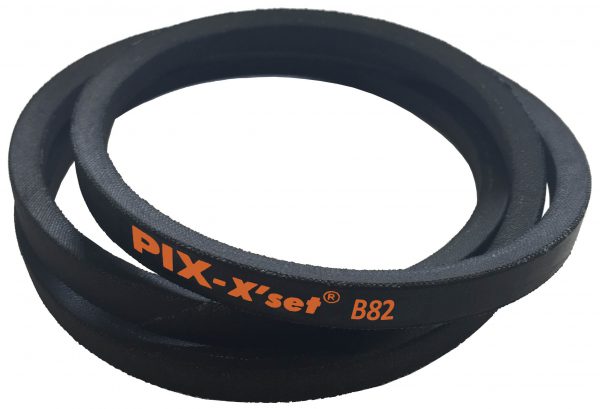

90032082 Gates B82 B section V-Belt

  • Arched top, concave sidewalls and rounded corners provideuniform tensile loading and uniform pulley sidewall contactfor excellent belt service life and reduced pulley wear
  • Vulcanized Flex-bonded tensile cords provide superiorresistance to tensile and ?exing forces, fatigue and shockloads
  • Flex-Weave™ oil and heat resistant cover protects the beltcore from the toughest environments
  • All sizes meet Gates V80® system matching tolerances
  • Meets ARPM/RMA IP-3-2 oil and heat resistant standards andIP-3-3 static conductivity requirements
  • REACH and RoHS 2compliant.


Availability: In stock

SKU: 90032082 Category:
Belt Back Side: Smooth
Belt Category: Classical Series – Inch
Belt Inside: Smooth
Belt Style: Hi-Power® II
Belt/Slab: Belt
Cogged/Smooth: Smooth
Cord Material: Polyester
Description: The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent “dishing” and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.
Effective Length: 84.71 in / 2152 mm
Manufacturer Catalog Number: B82
Manufacturer Upc Number: 072053207491
Maximum Temperature: +140°F / +60 °C
Minimum Temperature: -22°F / -30 °C
Number Of Sections: 1
Number Of Sides: Single Sided
Outside Circumference: 85.1 in / 2162 mm
Outside Length: 2152 mm
Overall Height: 0.4063 in
Package Length: 10.8 in
Resistance Features: Oil Resistant
Section: B
Static Conductive: Yes
Thickness: 11 mm
Top Width: 21/32 in
Trademark: Hi-Power™ II
Unitset: Yes
Number Of Strands: 1
Nominal Outside Length: 85.0000 in
